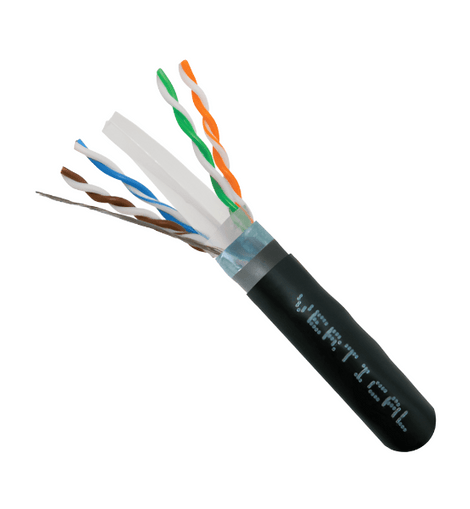

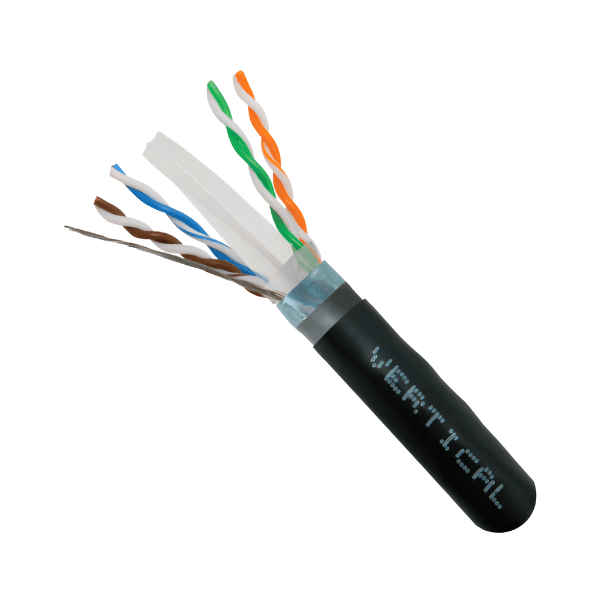

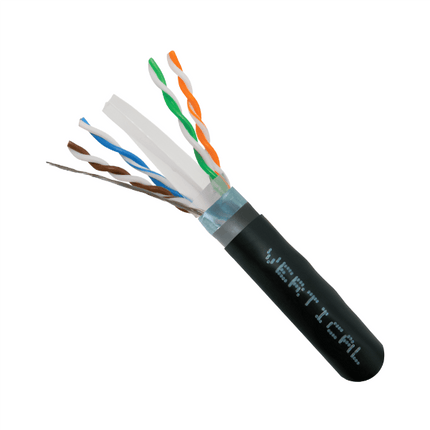

CAT6A Shielded Direct Burial

Category 6A Shielded Direct Burial cable is a high grade cable perfect for underground installations that are prone to moisture and electrical interference. This cable is composed of two jackets that prevent moisture from permeating into the conductors as well as a foil shield that protects against external electrical interference. The jacket is made with LLDPE (Linear low density polyethylene) material, making this cable also suitable for outdoor installations (UV Rated). LLDPE material is much tougher than PVC based materials. Made of solid copper conductors to meet and exceed ANSI/TIA cabling standards.

• Ultra High-Bandwidth, High-Performance Data Communications Cable
• Tested to 550MHz for excellent Attenuation and Crosstalk characteristics
• LLDPE (UV) Rated, Dual Jacket, Direct Burial
• CAT6A Shielded Twisted Pair (F/UTP) Cable
• 4-Pair Easily Identified Color-Striped Pairs
• 23AWG Solid Bare Copper Conductors
• Exceeds ANSI/TIA 568-C.2 and ISO 11801 specifications
• ETL Listed, RoHS Compliant
• Supplied in 1,000ft Wooden Spool

• Suitable for 10Gigabit Ethernet

Solid or Stranded?
Solid Cable is recommended for internal use, such as in between walls, between wiring closets, and for lengths over 25 feet. Recommended for use up to 100 meters (328 feet).

Stranded Cable is flexible alternative to solid cable. It is most commonly used to connect PC's and other end devices to routing devices in residential locations. Because of higher attenuation (signal fall-off) it is best for use in runs of 25 feet or less.
