Description

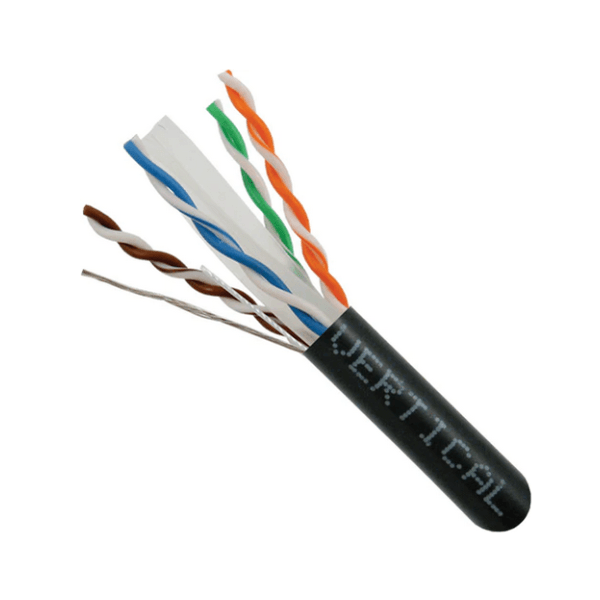

Cat6 Augmented Ethernet Cable 750MHz, 23AWG, UTP, 4 Pairs, Solid Bare Copper, 1000ft. Riser Rated.
SKU: 064-484/A/BK
CAT6A Riser Rated
Category 6a Riser Rated cable is the ideal cable for residential and commercial indoor installations that do not require Plenum rated cable. Made of solid copper conductors to meet and exceed ANSI/TIA cabling standards.
- Ultra High-Bandwidth, High-Performance Data Communications Cable
- Tested to 750MHz for excellent Attenuation and Crosstalk characteristics
- Suitable for 10Gigabit Ethernet
- PVC Jacket, Riser (CMR) Rated
- Category-6 Augmented Unshielded Twisted Pair (UTP) Cable
- 4-Pair Easily Identified Color-Striped Pairs
- 23AWG Solid Bare Copper Conductors (with center divider)
- Exceeds ANSI/TIA 568C.2, CSA and ISO/IEC 11801 specifications
- ETL Listed, RoHS Compliant
- Supplied in 1,000ft Wooden Spool
Riser Rated (CMR)
CMR cable is used in vertical applications such as runs between floors or through cable risers. Vertically installed Riser rated cables, when subjected to fire, prevent fire from travelling upwards. CM rated cables are not suitable for such applications.
Solid or Stranded?
Solid Cable is recommended for internal use, such as in between walls, between wiring closets, and for lengths over 25 feet. Recommended for use up to 100 meters (328 feet).
Stranded Cable is flexible alternative to solid cable. It is most commonly used to connect PC's and other end devices to routing devices in residential locations. Because of higher attenuation (signal fall-off) it is best for use in runs of 25 feet or less.
