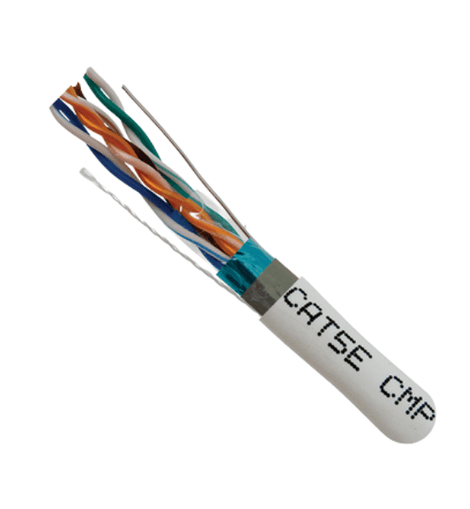

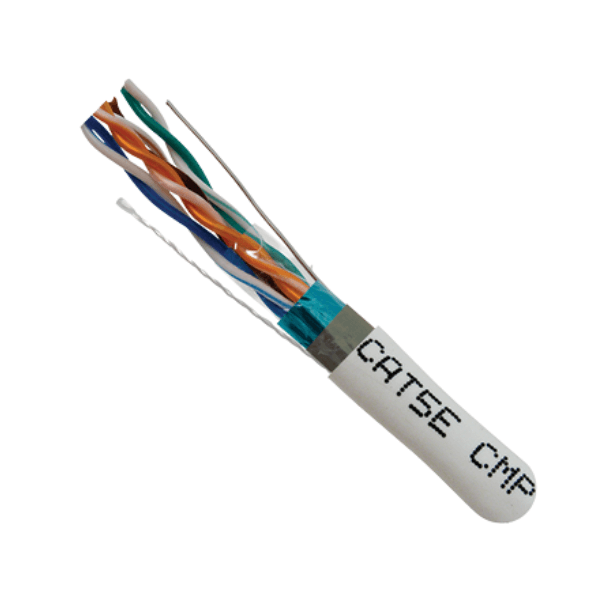

Cat5E Ethernet Cable 350MHz, 24AWG, STP, 4 Pairs, Solid Bare Copper, 1000ft. Plenum rated.

SKU: 057-481/S/P/WH

CAT5E Shielded Plenum Rated

With its low smoke Plenum rated jacket, this cable is the choice for installing thru air plenums and ducts. Shielded to protect against electromagnetic interference (EMI). Made of solid copper conductors to meet and exceed TIA/EIA cabling standards.

• High-Performance Data Communications Cable
• Tested to 350MHz for excellent Attenuation and Crosstalk characteristics
• PVC Jacket, Plenum (CMP) Rated
• Category-5E Shielded Twisted Pair (STP) Cable
• 4-Pair Easily Identified Color-Striped Pairs
• 24AWG Solid Bare Copper Conductors
• Exceeds EIA/TIA 568 C.2-1,CSA and ISO/IEC 11801 specifications
• UL Listed, TAA Compliant, RoHS Compliant
• Supplied in 1,000ft Pull Boxes

Plenum Rated (CMP)
Plenum is a hidden space within a building which is used for HVAC (Heating, Ventilation, and Air Conditioning) Plenum cable is coated with a fire-retardant coating.
Plenum cable must not burn easily and must not emit toxic fumes when exposed to extreme heat. Because of these requirements, plenum cable is more expensive than non-plenum cable. Plenum cable must pass Flame Test 6 (FT6).

Solid or Stranded?
Solid Cable is recommended for internal use, such as in between walls, between wiring closets, and for lengths over 25 feet. Recommended for use up to 100 meters (328 feet).

Stranded Cable is flexible alternative to solid cable. It is most commonly used to connect PC's and other end devices to routing devices in residential locations. Because of higher attenuation (signal fall-off) it is best for use in runs of 25 feet or less.
