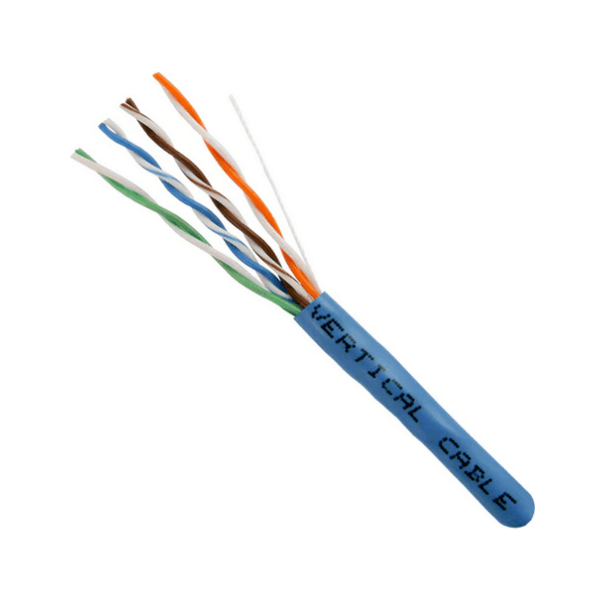

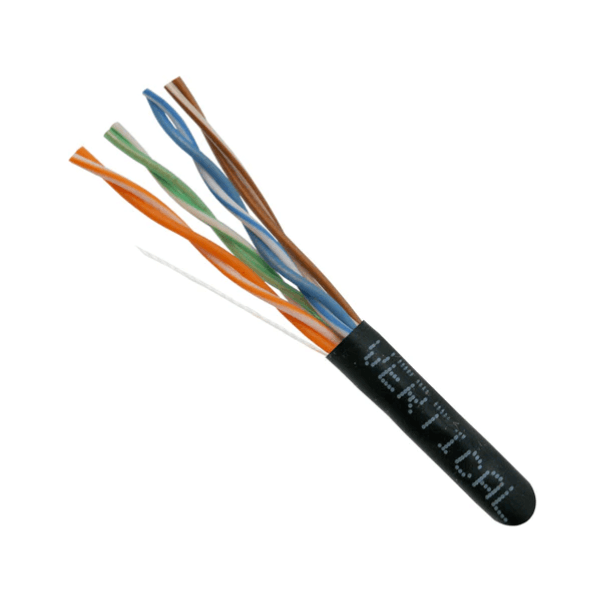

CAT5e Plenum Rated CMP

Cat5E Ethernet Cable 350MHz, 24AWG, UTP, 4 Pairs, Solid Bare Copper, 1,000ft. Pull Box, Plenum rated.SKU: 051-432/PL/YLCAT5E Plenum Rated (CMP) Made in USAWith its low smoke Plenum rated jacket, this cable is the choice for installing thru air plenums and ducts. Made of solid copper conductors to meet and exceed TIA/EIA cabling standards. High-Bandwidth, High-Performance Data Communications Cable Tested to 350MHz for excellent Attenuation and Crosstalk characteristics FR-PVC Jacket, Plenum (CMP) Rated Category-5E Unshielded Twisted Pair (UTP) Cable 4-Pair Easily Identified Color-Striped Pairs 24AWG Solid Bare Copper Conductors Exceeds TIA/EIA 568C.2, CSA and ISO/IEC 11801 specifications ETL Listed, RoHS Compliant, TAA Compliant, Made In USA Supplied in 1,000ft ,Easy Pull Box

Read more less

CAT5E Plenum Rated (CMP) With its low smoke Plenum rated jacket, this cable is the choice for installing thru air plenums and ducts. Made of solid copper conductors to meet and exceed ANSI/TIA cabling standards. High-Bandwidth, High-Performance Data Communications Cable Tested to 350MHz for excellent Attenuation and Crosstalk characteristics Flame Retardant PVC Jacket, Plenum (CMP) Rated CAT5e Unshielded Twisted Pair (U/UTP) 4-Pair Easily Identified Color-Striped Pairs 24AWG Solid Bare Copper Conductors Exceeds ANSI/TIA 568-2.D and ISO/IEC 11801 specifications UL Listed, RoHS Compliant, TAA Compliant Supplied in 1,000ft ,Easy Pull Box Plenum Rated (CMP) Plenum is a hidden space within a building which is used for HVAC (Heating, Ventilation, and Air Conditioning) Plenum cable is coated with a fire-retardant coating. Plenum cable must not burn easily and must not emit toxic fumes when exposed to extreme heat. Because of these requirements, plenum cable is more expensive than non-plenum cable. Plenum cable must pass Flame Test 6 (FT6). Solid or Stranded?Solid Cable is recommended for internal use, such as in between walls, between wiring closets, and for lengths over 25 feet. Recommended for use up to 100 meters (328 feet). Stranded Cable is flexible alternative to solid cable. It is most commonly used to connect PC's and other end devices to routing devices in residential locations. Because of higher attenuation (signal fall-off) it is best for use in runs of 25 feet or less. TAA-CompliantThis cable can be used for Governmental projects. The Trade Agreement Act of 1979 outlines that US Government and affiliated entities with federal contracts are required to purchase only “end products” made or substantially transformed within the United States or other TAA compliant countries. “End products” meaning articles, materials and supplies to be acquired for public use. The TAA requires suppliers to certify that each “end product” meets these requirements. The TAA is intended to foster the growth and maintenance of a fair and open trading system. TAA compliance requires that the U.S. Government (including GSA) only acquires products that are USA-made or made in approved countries. This means that all products must be either manufactured or “substantially transformed” in the United States or a TAA compliant country. In the situation were a product is assembled or comprised of components from several different countries, the guideline applies to the last country that the product is in before imported to the United States. At least 50% of the production must be completed by a TAA compliant country. Read more at GSA.gov.
